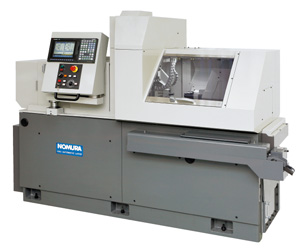

NN-20UB8



　

Equipment list



Commodity

Type name

Specification

Quantity/set

Remark

1

Swiss Type CNC lath

Nomura 20 U2

1MM~20MM OD use

1



2

Swiss Type CNC lath

Nomura 25 U3

3MM~25MM OD use

1



3

Swiss Type CNC lath

Nomura 25 UB5

3MM~25MM OD use

1



4

Swiss Type CNC lath

Nomura 25 UB6

3MM~25MM OD use

1



5

Swiss Type CNC lath

Nomura 25 UB7

3MM~25MM OD use

2



6

Swiss Type CNC lath

Nomura 25YB

3MM~25MM OD use

1



7

Swiss Type CNC lath

Nomura 10CS

0.15MM~10MM OD use

1



8

Swiss Type CNC lath

TSUGAMI BO205

3MM~20MM OD use

2



9

Swiss Type CNC lath

Nomura20J

0.15MM~20MM OD use

1



10

CNC lath

恰群

8MM~42MM OD use

2



11

Auto lath

恰群

4MM~20MM OD use

4



12

Screw Machine





6



13

TOTAL





 23


  • Rapid feed rate speed of 36m/min.
  • Adopts new tool holder (□12.7mm)
  • Built-in motor (3.7kW) with overwhelming torque on Main Spindle enables to cut harder material
  • C-axis function for $1 & $2 as standard function

PDF download

Tool Post ($1)
Tool Post ($1)
Succeed the tool-preset method enabling quick changing of tooling.
The tool holder has few twine-trouble of cut-powder with small-sized, highly hard and new design.
Tool Size Standard Option
OD Tool (Tool Holder) □12.7 5 6
ID Tool ER-16 4 4
Live Tool ER-16 4 3
Tool Post ($2)
Tool Post ($2)
4 Position tool
  • Center drill
  • Drilling
  • Tap
  • OD tool
Tool post ($2) controllable independently enables a wide range of optional installations.
