CNC SWISS TYPE TSUGAMI BO205 (20型)日本cnc走心複合加工機 CNC SWISS TYPE TSUGAMI BO205 (20型)日本cnc走心複合加工機

CNC LATHE 洽群電腦走刀42型(C42)  cnc車床複合加工機

 CNC LATHE 洽群走刀複合25型(CY25) cnc車床複合加工機
CNC SWISS TYPE 野村走心複合式20型(U2) 日本cnc走心複合加工機 CNC SWISS TYPE野村走心複合背面加工式20型(UB5) 日本cnc走心複合加工機
CNC SWISS TYPE野村走心複合背面加工式25型(UB6) 日本cnc走心複合加工機 CNC SWISS TYPE野村走心複合背面加工式25型(YB25) 日本cnc走心複合加工機
CNC SWISS TYPE 野村走心複合背面加工式(UB7) 日本cnc走心複合加工機 CNC SWISS TYPE野村走心複合背面加工式(UB7) 日本cnc走心複合加工機
CNC SWISS TYPE 野村走心複合式10型(10CS) 日本cnc走心複合加工機 CNC SWISS TYPE野村走心複合背面加工式(16SB) 日本cnc走心複合加工機
CNC SWISS TYPE野村走心複合背面加工式20型(20J) 日本cnc走心複合加工機 CNC SWISS TYPE野村走心複合式2５型(U３) 日本cnc走心複合加工機

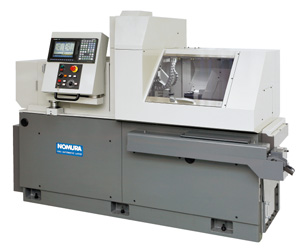

NN-20UB8



　



Equipment list



Commodity

Type name

Specification

Quantity/set

Remark

1

Swiss Type CNC lath

Nomura 20 U2

1MM~20MM OD use

1



2

Swiss Type CNC lath

Nomura 25 U3

3MM~25MM OD use

1



3

Swiss Type CNC lath

Nomura 25 UB5

3MM~25MM OD use

1



4

Swiss Type CNC lath

Nomura 25 UB6

3MM~25MM OD use

1



5

Swiss Type CNC lath

Nomura 25 UB7

3MM~25MM OD use

2



6

Swiss Type CNC lath

Nomura 25YB

3MM~25MM OD use

1



7

Swiss Type CNC lath

Nomura 10CS

0.15MM~10MM OD use

1



8

Swiss Type CNC lath

TSUGAMI BO205

3MM~20MM OD use

3



9

Swiss Type CNC lath

Nomura20J&20J2

0.15MM~20MM OD use

2



10

CNC lath

洽群

8MM~42MM OD use

2



11

Auto lath

洽群

4MM~20MM OD use

4



12

CNC lath

 MIYANO DHY42

 6MM~42MMOD use

1



13

CNC lath

 MIYANO BND51SY2

 6MM~51MMOD use

1



14

Screw Machine





6



13

TOTAL





 27



  • Rapid feed rate speed of 36m/min.
  • Adopts new tool holder (□12.7mm)
  • Built-in motor (3.7kW) with overwhelming torque on Main Spindle enables to cut harder material
  • C-axis function for $1 & $2 as standard function

PDF download

Tool Post ($1)
Tool Post ($1)
Succeed the tool-preset method enabling quick changing of tooling.
The tool holder has few twine-trouble of cut-powder with small-sized, highly hard and new design.
Tool Size Standard Option
OD Tool (Tool Holder) □12.7 5 6
ID Tool ER-16 4 4
Live Tool ER-16 4 3
Tool Post ($2)
Tool Post ($2)
4 Position tool
  • Center drill
  • Drilling
  • Tap
  • OD tool
Tool post ($2) controllable independently enables a wide range of optional installations.
